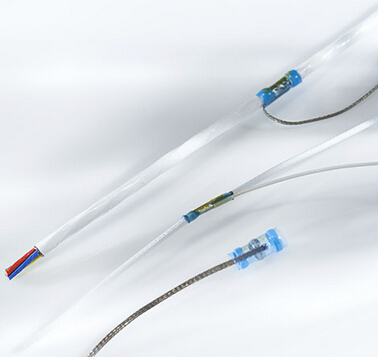

SolderSleeve 屏蔽接地端接器能够为多种应用提供环境密封、绝缘和包封焊料的连接。SolderSleeve 端接器有许多样式。

可重复的可靠端接。 TE SolderSleeve 屏蔽接地端接器能够为温度范围为 -65°C 至 200°C 的多种应用提供环境密封、绝缘和包封焊

83519
S01/S02 和 SO63 系列满足 SAE-AS83519 的性能要求

200C
S200 系列最大工作温度
S03 系列端接器包含彩色热致变色温度指示剂,该指示剂会在表面达到润湿温度时出现明显的颜色变化。这种颜色变化为制造和质量控制提供了一种检查已完成端接的辅助手段。
热致变色温度指示灯,
S03 系列
屏蔽端接
产品选项
产品系列 系统工作温度(最大值) 在额定电缆上使用(最小) 焊接合金 助焊剂类型 绝缘材料
B-155 125oC (257oF) 85oC (185oF) Bi58 PA 聚烯烃
CWT 125oC (257oF) 85oC (185oF) Cd18 RA 聚烯烃
SO63 150oC (302oF) 125oC (257oF) Sn63 RMA 聚氟乙烯
S01/S02、S03 150oC (302oF) 125oC (257oF) Sn63 RMA 聚氟乙烯
SO96 175oC (347oF) 150oC (302oF) Sn96 RA 聚氟乙烯
SO175 175oC (347oF) 150oC (302oF) Sn96 RA 聚氟乙烯
S200 200oC (392oF) 150oC (302oF) Sn96 RA 含氟聚合物


机构认证
系列 机构
SO63 NAS 1747
S01/S02、SO63 MIL-S-83519/1 & /2
SO96 NAS 1747

优势:屏蔽端接
单件式设计
可选预装接地引线
提供 M83519/1 和 M83519/2 经军用规范认可的部件
尺寸小、重量轻
特性:屏蔽端接
密封
可检查性
应力消除
绝缘
受控焊接流程


应用:屏蔽端接
电缆集线和维修:
维护与维修操作 (MRO)
商用航空
军用航空航天
地面防御
汽车售后市场

B-155-3801
B-155-3802
B-155-3 B-155-03-35-22-5
B-155-5 B-155-05-35-22-5
B-155-6 B-155-06-35-22-5
B-155-7 B-155-07-35-22-5
B-155-9 B-155-09-35-22-5
B-155-11 B-155-11-35-22-5
B-155-13 B-155-13-35-2
SO63-1-55-20-90 SO63-1-55-22-90 SO63-1-55-24-90 SO63-1-55-26-90 SO63-1-01 SO63-1-9030
SO63-2-00 SO63-2-55-20-90 SO63-2-55-22-90 SO63-2-55-24-90 SO63-2-55-26-90 SO63-2-01 SO63-2-9030
SO63-3-00 SO63-3-55-20-90 SO63-3-55-22-90 SO63-3-55-24-90 SO63-3-55-26-90 SO63-3-01 SO63-3-9030
SO63-4-00 SO63-4-55-20-90 SO63-4-55-22-90 SO63-4-55-24-90 SO63-4-55-26-90 SO63-4-01 SO63-4-9030
SO63-5-00 SO63-5-55-20-90 SO63-5-55-22-90 SO63-5-55-24-90 SO63-5-55-26-90 SO63-5-01 SO63-5-9030

M83519/1-1 S01-01-R M83519/2-1 S02-01-R M83519/2-6 S02-06-R
M83519/1-2 S01-02-R M83519/2-2 S02-02-R M83519/2-7 S02-07-R
M83519/1-3 S01-03-R M83519/2-3 S02-03-R M83519/2-8 S02-08-R
M83519/1-4 S01-04-R M83519/2-4 S02-04-R M83519/2-9 S02-09-R
M83519/1-5 S01-05-R M83519/2-5 S02-05-R M83519/2-10 S02-10-R

M83519/2-11 S02-11-R M83519/2-16 S02-16-R
M83519/2-12 S02-12-R M83519/2-17 S02-17-R
M83519/2-13 S02-13-R M83519/2-18 S02-18-R
M83519/2-14 S02-14-R M83519/2-19 S02-19-R
M83519/2-15 S02-15-R M83519/2-20 S02-20-R


S03-01-R S03-06-R
S03-02-R S03-07-R
S03-03-R S03-08-R
S03-04-R S03-09-R
S03-05-R S03-10-R

SO96-1-00 SO96-1-55-22-90 SO96-1-01
SO96-2-00 SO96-2-55-22-90 SO96-2-01
SO96-3-00 SO96-3-55-22-90 SO96-3-01
SO96-4-00 SO96-4-55-22-90 SO96-4-01
SO96-5-00 SO96-5-55-22-90 SO96-5-01


SO175-1-00 SO175-1-55-22-90 SO175-1-01
SO175-2-00 SO175-2-55-22-90 SO175-2-01
SO175-3-00 SO175-3-55-22-90 SO175-3-01
SO175-4-00 SO175-4-55-22-90 SO175-4-01
SO175-5-00 SO175-5-55-22-90 SO175-5-01

S200-1-00 S200-1-WI-22-9 S200-1-01
S200-2-00 S200-2-WI-22-9 S200-2-01
S200-3-00 S200-3-WI-22-9 S200-3-01
S200-4-00 S200-4-WI-22-9 S200-4-01
S200-5-00 S200-5-WI-22-9 S200-5-01


D-1744-01
D-1744-02
D-1744-03
D-1744-04
D-1744-05
D-1744-06
D-1744-07
D-1744-08
D-144-25 SAE-AS83519/1-1 (formerly MIL-S-83519)
1745-2 D-100-00 Inactive, Use SAE-AS83519/1-2 (formerly MIL-S-83519)
1745-3 D-101-00 Inactive, Use SAE-AS83519/1-3 (formerly MIL-S-83519)
1745-4 D-103-00 Inactive, Use SAE-AS83519/1-5 (formerly MIL-S-83519)
1745-5 D-144-26
1745-6 D-100-31
1745-7 D-101-31
1745-8 D-103-31

1745-13 D-142-83 Inactive, Use SAE-AS83519/1-1 (formerly MIL-S-83519)
1745-14 D-142-50 Inactive, Use SAE-AS83519/1-2(formerly MIL-S-83519)
1745-15 D-142-51 Inactive, Use SAE-AS83519/1-3 (formerly MIL-S-83519)
1745-16 D-142-52 Inactive, Use SAE-AS83519/1-5 (formerly MIL-S-83519)
1745-17 D-107-00 Inactive, Use SAE-AS83519/1-4 (formerly MIL-S-83519)
1745-18 D-104-00
1745-19 D-105-00
1745-20 D-107-31
1745-21 D-104-31
1745-22 D-105-31
1745-23 D-142-56 Inactive, Use SAE-AS83519/1-4 (formerly MIL-S-83519)
1745-24 D-142-65
1745-25 D-142-66
1746-1 D-144-25 Inactive, Use SAE-AS83519/1-1 (formerly MIL-S-83519)
1746-2 D-144-00 Inactive, Use SAE-AS83519/1-2 (formerly MIL-S-83519)
1746-3 D-144-01 Inactive, Use SAE-AS83519/1-3 (formerly MIL-S-83519)
1746-4 D-144-02 Inactive, Use SAE-AS83519/1-5 (formerly MIL-S-83519)
1746-5 D-144-26
1746-6 D-144-03
1746-7 D-144-04
1746-8 D-144-05
1746-9 D-144-46 Inactive, Use SAE-AS83519/1-4 (formerly MIL-S-83519)
1746-10 D-144-37

M83519/1-1 S01-01-R SO63-1-00
M83519/1-2 S01-02-R SO63-2-00
M83519/1-3 S01-03-R SO63-3-00
M83519/1-4 S01-04-R SO63-4-00
M83519/1-5 S01-05-R SO63-5-00
M83519/2-1 S02-01-R SO63-1-55-20-90
M83519/2-2 S02-02-R SO63-2-55-20-90
M83519/2-3 S02-03-R SO63-3-55-20-90
M83519/2-4 S02-04-R SO63-4-55-20-90
M83519/2-5 S02-05-R SO63-5-55-20-90
M83519/2-6 S02-06-R SO63-1-55-22-90
M83519/2-7 S02-07-R SO63-2-55-22-90
M83519/2-8 S02-08-R SO63-3-55-22-90
M83519/2-9 S02-09-R SO63-4-55-22-90
M83519/2-10 S02-10-R SO63-5-55-22-90
M83519/2-11 S02-11-R SO63-1-55-24-90
M83519/2-12 S02-12-R SO63-2-55-24-90
M83519/2-13 S02-13-R SO63-3-55-24-90
M83519/2-14 S02-14-R SO63-4-55-24-90
M83519/2-15 S02-15-R SO63-5-55-24-90
M83519/2-16 S02-16-R SO63-1-55-26-90
M83519/2-17 S02-17-R SO63-2-55-26-90
M83519/2-18 S02-18-R SO63-3-55-26-90
M83519/2-19 S02-19-R SO63-4-55-26-90
M83519/2-20 S02-20-R SO63-5-55-26-90

CWT-9002 CWT-9003
CWT-9004 CWT-9005
B-155-9001
B-155-9002
B-155-9003
B-155-9004
B-155-9005
D-1744-01
D-1744-02
D-1744-03
D-1744-04
D-110-35
D-110-41
D-110-0181
D-110-0101
D-110-0090
D-110-0083
SGRP-1 SGRS-1

SGRP-2 Red SGRS-2 Red
SGRP-3 BlueSGRS-3 Blue

SGRP-4 Yellow SGRS-4 Yellow
SGRS-1-58 Green
SGRS-2-58 Red
SGRS-3-58 Blue
SGRS-4-58 Yellow

D-406-0034
D-406-0001
D-406-0002
D-406-0003

SGRS-3-58
SGRS-4-58
SGRP-1 SGRS-1-58 SGRP-3 SGRS-3-58SGRP-1 SGRS-1-58
SGRP-2 SGRS-2-58

C-203-01
C-203-02
C-203-03
D-436-36-COLD
D-436-37-COLD
D-436-38-COLD
D-436-0128 D-436-0119
D-436-58 D-436-75
D-436-59 D-436-76
D-436-60 D-436-77
D-436-61 D-436-78
D-436-36* D-436-82 Red D-200-82
D-436-37* D-436-83 Blue D-200-83
D-436-38* D-436-84 Yellow D-200-84Yellow
D-436-0110 D-436-85Red Red
D-436-52 D-436-86 Blue Blue (2 per hole)
D-436-53 D-436-87
D-436-0115 D-436-88
D-436-42 D-436-89
D-436-43 D-436-90

Red D-609-06 D-609-09
Blue D-609-07 D-609-10
D-609-08 D-609-11
D-609-03 D-609-12
D-609-04 D-609-13
D-609-05 D-609-14

D-436-0096
D-436-0097
D-436-0098
D-200-82 Red D17660-000
D-200-83 Blue A36675-000
D-200-84 Yellow C60253-000

D-200-82 M81824/1-1
D-200-83 M81824/1-2
D-200-84 M81824/1-3

B-106-2401
B-106-2402
B-106-2403
B-106-2502
B-106-2503

B-106-1401
B-106-1501
B-106-1601
B-106-1801
B-106-1991
B-106-1402
B-106-1502
B-106-1602
B-106-1802
B-106-1992
B-106-1403
B-106-1503
B-106-1603
B-106-1803
B-106-1993
B-106-3631
B-106-3632
B-106-3633
B-106-3281
B-106-3481
B-106-6201
B-106-4631
B-106-4632
B-106-7401
B-106-7502
B-106-8401
B-106-8502
SGRT-1-02
SGRT-2-03
SGRT-2-04
SGRT-2-05
SGRT-2-06
SGRT-3-06
SGRT-3-08
SGRT-4-06
SGRT-4-08

B-155-1501
B-155-1502
B-155-1501
B-155-1502
B-155-1503
B-155-1502
B-155-1503
B-155-1503
B-155-1504
B-155-1501
B-155-1502
B-155-1503
B-155-1504
B-155-1505
D-141-30 D-713-03D-141-07 — D-711-00 D-141-31 — D-711-04 D-711-07 D-711-08 D-141-56
D-129-05
D-714-01
D-129-03
D-714-00
D-129-0043
D-110-0062
D-110-0217
D-141-13
D-141-22
D-141-30

B-155-3801
B-155-3802
B-155-3 B-155-03-35-22-5
B-155-5 B-155-05-35-22-5
B-155-6 B-155-06-35-22-5
B-155-7 B-155-07-35-22-5
B-155-9 B-155-09-35-22-5
B-155-11 B-155-11-35-22-5
B-155-13 B-155-13-35-22-5

SO63-1-00 SO63-1-55-20-90 SO63-1-55-22-90 SO63-1-55-24-90 SO63-1-55-26-90 SO63-1-01 SO63-1-9030
SO63-2-00 SO63-2-55-20-90 SO63-2-55-22-90 SO63-2-55-24-90 SO63-2-55-26-90 SO63-2-01 SO63-2-9030
SO63-3-00 SO63-3-55-20-90 SO63-3-55-22-90 SO63-3-55-24-90 SO63-3-55-26-90 SO63-3-01 SO63-3-9030
SO63-4-00 SO63-4-55-20-90 SO63-4-55-22-90 SO63-4-55-24-90 SO63-4-55-26-90 SO63-4-01 SO63-4-9030
SO63-5-00 SO63-5-55-20-90 SO63-5-55-22-90 SO63-5-55-24-90 SO63-5-55-26-90 SO63-5-01 SO63-5-9030

M83519/1-1 S01-01-R M83519/2-1 S02-01-R M83519/2-6 S02-06-R
M83519/1-2 S01-02-R M83519/2-2 S02-02-R M83519/2-7 S02-07-R
M83519/1-3 S01-03-R M83519/2-3 S02-03-R M83519/2-8 S02-08-R
M83519/1-4 S01-04-R M83519/2-4 S02-04-R M83519/2-9 S02-09-R
M83519/1-5 S01-05-R M83519/2-5 S02-05-R M83519/2-10 S02-10-R

M83519/2-11 S02-11-R M83519/2-16 S02-16-R
M83519/2-12 S02-12-R M83519/2-17 S02-17-R
M83519/2-13 S02-13-R M83519/2-18 S02-18-R
M83519/2-14 S02-14-R M83519/2-19 S02-19-R
M83519/2-15 S02-15-R M83519/2-20 S02-20-R

S03-01-R S03-06-R
S03-02-R S03-07-R
S03-03-R S03-08-R
S03-04-R S03-09-R
S03-05-R S03-10-R

SO96-1-00 SO96-1-55-22-90 SO96-1-01
SO96-2-00 SO96-2-55-22-90 SO96-2-01
SO96-3-00 SO96-3-55-22-90 SO96-3-01
SO96-4-00 SO96-4-55-22-90 SO96-4-01
SO96-5-00 SO96-5-55-22-90 SO96-5-01
SO175-1-00 SO175-1-55-22-90 SO175-1-01
SO175-2-00 SO175-2-55-22-90 SO175-2-01
SO175-3-00 SO175-3-55-22-90 SO175-3-01
SO175-4-00 SO175-4-55-22-90 SO175-4-01
SO175-5-00 SO175-5-55-22-90 SO175-5-01
S200-1-00 S200-1-WI-22-9 S200-1-01
S200-2-00 S200-2-WI-22-9 S200-2-01
S200-3-00 S200-3-WI-22-9 S200-3-01
S200-4-00 S200-4-WI-22-9 S200-4-01
S200-5-00 S200-5-WI-22-9 S200-5-01

1744-1 D-1744-01
1744-2 D-1744-02
1744-3 D-1744-03
1744-4 D-1744-04
1744-5 D-1744-05
1744-6 D-1744-06
1744-7 D-1744-07
1744-8 D-1744-08
1745-1 D-144-25 Inactive, Use SAE-AS83519/1-1 (formerly MIL-S-83519)
1745-2 D-100-00 Inactive, Use SAE-AS83519/1-2 (formerly MIL-S-83519)
1745-3 D-101-00 Inactive, Use SAE-AS83519/1-3 (formerly MIL-S-83519)
1745-4 D-103-00 Inactive, Use SAE-AS83519/1-5 (formerly MIL-S-83519)
1745-5 D-144-26
1745-6 D-100-31
1745-7 D-101-31
1745-8 D-103-31
1745-9 Obsolete - Use NAS1745-13
1745-10 Obsolete - Use NAS1745-14
1745-11 Obsolete - Use NAS1745-15
1745-12 Obsolete - Use NAS1745-16
1745-13 D-142-83 Inactive, Use SAE-AS83519/1-1 (formerly MIL-S-83519)
1745-14 D-142-50 Inactive, Use SAE-AS83519/1-2(formerly MIL-S-83519)
1745-15 D-142-51 Inactive, Use SAE-AS83519/1-3 (formerly MIL-S-83519)
1745-16 D-142-52 Inactive, Use SAE-AS83519/1-5 (formerly MIL-S-83519)
1745-17 D-107-00 Inactive, Use SAE-AS83519/1-4 (formerly MIL-S-83519)
1745-18 D-104-00
1745-19 D-105-00
1745-20 D-107-31
1745-21 D-104-31
1745-22 D-105-31
1745-23 D-142-56 Inactive, Use SAE-AS83519/1-4 (formerly MIL-S-83519)
1745-24 D-142-65
1745-25 D-142-66
1746-1 D-144-25 Inactive, Use SAE-AS83519/1-1 (formerly MIL-S-83519)
1746-2 D-144-00 Inactive, Use SAE-AS83519/1-2 (formerly MIL-S-83519)
1746-3 D-144-01 Inactive, Use SAE-AS83519/1-3 (formerly MIL-S-83519)
1746-4 D-144-02 Inactive, Use SAE-AS83519/1-5 (formerly MIL-S-83519)
1746-5 D-144-26
1746-6 D-144-03
1746-7 D-144-04
1746-8 D-144-05
1746-9 D-144-46 Inactive, Use SAE-AS83519/1-4 (formerly MIL-S-83519)
1746-10 D-144-37

M83519/1-1 S01-01-R SO63-1-00
M83519/1-2 S01-02-R SO63-2-00
M83519/1-3 S01-03-R SO63-3-00
M83519/1-4 S01-04-R SO63-4-00
M83519/1-5 S01-05-R SO63-5-00
M83519/2-1 S02-01-R SO63-1-55-20-90
M83519/2-2 S02-02-R SO63-2-55-20-90
M83519/2-3 S02-03-R SO63-3-55-20-90
M83519/2-4 S02-04-R SO63-4-55-20-90
M83519/2-5 S02-05-R SO63-5-55-20-90
M83519/2-6 S02-06-R SO63-1-55-22-90
M83519/2-7 S02-07-R SO63-2-55-22-90
M83519/2-8 S02-08-R SO63-3-55-22-90
M83519/2-9 S02-09-R SO63-4-55-22-90
M83519/2-10 S02-10-R SO63-5-55-22-90
M83519/2-11 S02-11-R SO63-1-55-24-90
M83519/2-12 S02-12-R SO63-2-55-24-90
M83519/2-13 S02-13-R SO63-3-55-24-90
M83519/2-14 S02-14-R SO63-4-55-24-90
M83519/2-15 S02-15-R SO63-5-55-24-90
M83519/2-16 S02-16-R SO63-1-55-26-90
M83519/2-17 S02-17-R SO63-2-55-26-90
M83519/2-18 S02-18-R SO63-3-55-26-90
M83519/2-19 S02-19-R SO63-4-55-26-90
M83519/2-20 S02-20-R SO63-5-55-26-90

CWT-4174-W122-5/9
CWT-4058-W122-5/9
CWT-4059-W122-5/9

D-181-1220-90/9
D-181-1222-90/9
D-181-1224-90/9
D-181-1226-90/9
D-181-1826-6/9
D-181-1830-6/9
D-181-2220-90/9
D-181-2222-90/9
D-181-2224-90/9
D-181-2226-90/9
D-181-2826-6/9
D-181-2830-6/9
D-181-3220-90/9
D-181-3222-90/9
D-181-3224-90/9
D-181-3226-90/9
 [0.67] [0.85]
D-181-3826-6/9
D-181-3830-6/9
D-184-1220-90/9
D-184-1222-90/9
D-184-1224-90/9
D-184-1226-90/9
D-184-2220-90/9
D-184-2222-90/9
D-184-2224-90/9
D-184-2226-90/9

B-046-14-N
B-046-10-N B-046-12-N
B-046-11-N B-046-13-N
B-046-15-N
B-046-66-N B-046-16-N
B-046-68-N B-046-18-N

 RBD-50-S-00
RBD-50-M-00
RBD-50-L-00
RBD-75-S-00
RBD-75-M-00
RBD-75-L-00
RBD-50-S-01
RBD-50-M-01
RBD-50-L-01
RBD-75-S-01
RBD-75-M-01
RBD-75-L-01
RBD-50-S-02
RBD-50-M-02

RBD-50-L-02
RBD-75-S-02
RBD-75-M-02
RBD-75-L-02
RBD-50-S-03
RBD-50-M-03
RBD-50-L-03
RBD-75-S-03
RBD-75-M-03
RBD-75-L-03
RBD-50-S-04
RBD-50-L-04
RBD-75-S-04
RBD-75-M-04
RBD-75-L-04


RTD-50-S-00
RTD-50-M-00

RTD-50-L-00
RTD-75-S-00
RTD-75-M-00
RTD-75-L-00
RTD-50-S-03
RTD-50-M-03
RTD-50-L-03
RTD-75-S-03
RTD-75-M-03
RTD-75-L-03
RTD-50-S-04
RTD-50-M-04
RTD-50-L-04
RTD-75-S-04
RTD-75-M-04
RTD-75-L-04

RTD-50-S-02
RTD-50-M-02
RTD-50-L-02
RTD-75-S-02
RTD-75-M-02
RTD-75-L-02

RTD-50-S-01
RTD-50-M-01
RTD-50-L-01
RTD-75-S-01
RTD-75-M-01
RTD-75-L-01

D-150-0168 D-150-0228
D-150-0169 D-150-0229
D-150-0170 D-150-0230
D-150-0174 D-150-0231
D-150-0175 D-150-0232
D-150-0176 D-150-0233
D-150-0177 D-150-0234
D-150-0178 D-150-0235
D-150-0179 D-150-0236
D-150-0180 D-150-0237
D-150-0181 D-150-0238

MIS-20067/2-002a
MIS-20067/1-001a
MIS-20067/4-001a
MIS-20067/3-001a
M39029/79b D-602-72
M39029/80b D-602-73
M39029/40b D-602-76
M39029/41b D-602-77
D-602-0126
D-602-0127
D-602-0172
MIS-20067/2-001
D-602-0173

MIS-20067/8-001a D-610-09
MIS-20067/7-001a D-610-10

D-602-44/45 ES61133 AT-1319-14 AD-1480
D-602-0172/0173 ES61240 — —
D-602-54/55 ES61132 — —
D-602-0126/0127 ES61199 — —
748 D-610-09/10 ES61187 AT-1319-15 AD-1571
D-602-72/73 ES61135 AT-1319-18 AD-1486
D-602-76/77 ES61164 AT-1319-20 AD-1554

M39029/60a
M39029/59a
M39029/76a D-602-0140 16 P Coaxial
M39029/77aD-602-0141 16 S Coaxial
M39029/76a D-602-0142 16 P Twisted pair
M39029/77a D-602-0143 16 S Twisted pair
M39029/28a D-602-0144 12 P Coaxial
M39029/75a 915308-1 D-602-0145
M39029/28a 915307-3  D-602-0146
M39029/75a 915308-3  D-602-0147 12 S Twisted pair
M39029/28a 915307-2 D-602-0150 12 P Coaxial
M39029/75a 915308-2  D-602-0151 12 S Coaxial
— 8340712-OS-01   D-602-1108 8 S Twisted pairb
 D-602-1109
D-602-1110
D-602-1111
— 8340712-OL-01 D-602-1112

— 8340713-OL-01 2.49–3.42 1.68–3.05 .76–1.24 .27–.79 24–26 D-602-1113 8 P Twisted pairb
[.098-.135] [.066-.120] [.030-.049] [.011-.031]
M39029/90a 8912020-OS-01 3.68 — .64–1.29 .27–.74 24–26 DK-602-0156-N-1 8 P Twinaxialc
[.145 ] Max. [.029-.051] [.011-.029]
M39029/90a 8912020-DL-01 4.11 — .64–1.29 .27–.74 24–26 DK-602-0156-N-2 8 P Twinaxialc
[.162] Max. [.029-.051] [.011-.029]

M39029/90a 8912020-EL-01 4.50 max. DK-602-0156-N-3 8 P Twinaxialc
[.177] [.029–.051] [.011–.029]
M39029/91a 8912019-OS-01 3.68 max. DK-602-0157-N-1 8 S Twinaxialc
[.145] [.029–.051] [.011–.029]
M39029/91a 8912019-DL-01 4.12 max. DK-602-0157-N-2 8 S Twinaxialc
[.162] [.029–.051] [.011–.029]
M39029/91a 8912019-EL-01 4.50 max. DK-602-0157-N-3 8 S Twinaxialc
[.177] [.029–.051] [.011–.029]
M39029/90a 8912020-OL-01  DK-602-0169-1
[.184]
M39029/91a 8912019-OL-01  DK-602-0170-1
[.184]
Series II
M39029/76a 915304-1
M39029/77a 915306-1 26–30 D-602-0171
M39029/76a 915304-2 D-602-0142
M39029/77a 915306-2  D-602-0174

0140/0141 ES61226 AT-1319-78 AD-1565
M81969/8-07 M81869/8-08
Size 16
0142/0143 ES61224 — —
or or
0171 ES61226 AT-1319-27 AD-1572 M81969/14-03 M81969/14-03
0174 ES61224 — —
999
0144/0145 ES61206 AT-1319-24 AD-1566 M81969/8-09 M81969/8-10
Size 12 0146/0147 ES61218 — — or or
0150/0151 ES61223 — — M81969/14-04 M81969/14-04
999
0122/0123 ES61179 AT-1319-22 AD-1568
Size 8
1108/1109 ES61172 —
1110/1111 ES61172 AT-1319-22 AD-1568 M81969/14-06

0156/0157-X ES61231 AT-1319-14 AD-1480
0169/0170-X ES61235


D-602-0278
D-602-0279
D-602-0288
D-602-0289

M39029/74-400
M39029/73-397 D-602-0095
M39029/74-401 D-602-0104 12 P Twisted pair
M39029/73-398 D-602-0105 12 S Twisted pair
M39029/74-399  D-602-0106 12 P Large coaxial
M39029/73-396 D-602-0107 12

D-602-0094/0095 ES61128 AT-1319-19 AD-1494 AD-1527 AD-1527 AD-1496
D-602-0106/0107 ES61134 Rev. D Rev. C (M81969/14-04) (M81969/14-04) (twisted)
D-602-0104/0105 ES61129 — — — — —

D-602-0185 16 socket Coaxial —
D-602-0094 12 pin Coaxial M39029/74
D-602-0093* 12 socket Coaxial M39029/73
D-602-0106 12 pin Coax (large) M39029/74
D-602-0189* 12 socket Coax (large) M39029/73
*These SolderTacts contacts are intermateable with M39029/73, but are not on QPL.
SolderTacts Size Polarity Cable Type Contact Military
Reference Specification
D-602-0186 8 pin Twisted pair M39029/96
D-602-0187 8 socket Twisted pair M39029/95
DK-602-0186-2 8 pin Sh. twisted pair M39029/96
DK-602-0187-2 8 socket Sh. twisted pair M39029/95
** These

D-602-0186 8 pin Twisted pair M39029/96
D-602-0187 8 socket Twisted pair M39029/95
DK-602-0186-2 8 pin Sh. twisted pair M39029/96
DK-602-0187-2 8 socket Sh. twisted pair M39029/95

D-600-0071 — For shielded twisted pair
D-600-0116 For size 8 DOD-C-83527 series —
Performance D-600-0125 For size 8 MIL-C-38999 series, for twisted pair

D-500-0255-511-1 D-500-0255-513-1 D-500-0255-515-1 D-500-0255-517-1
D-500-0255-521-1 D-500-0255-523-1 D-500-0255-525-1 D-500-0255-527-1
D-500-0255-531-1 D-500-0255-533-1 D-500-0255-535-1 D-500-0255-537-1
D-500-0255-541-1 D-500-0255-543-1 D-500-0255-545-1 D-500-0255-547-1
D-500-0255-551-1 D-500-0255-553-1 D-500-0255-555-1 D-500-0255-557-1
D-500-0255-561-1 D-500-0255-563-1 D-500-0255-565-1 D-500-0255-567-1
D-500-0255-571-1 D-500-0255-573-1 D-500-0255-575-1 D-500-0255-577-1
D-500-0255-581-1 D-500-0255-583-1 D-500-0255-585-1 D-500-0255-587-1
D-500-0255-512-1 D-500-0255-513-2 D-500-0255-515-2 D-500-0255-517-2
D-500-0255-522-1 D-500-0255-523-2 D-500-0255-525-2 D-500-0255-527-2
D-500-0255-532-1 D-500-0255-533-2 D-500-0255-535-2 D-500-0255-537-2
D-500-0255-542-1 D-500-0255-543-2 D-500-0255-545-2 D-500-0255-547-2
D-500-0255-552-1 D-500-0255-553-2 D-500-0255-555-2 D-500-0255-557-2
D-500-0255-562-1 D-500-0255-563-2 D-500-0255-565-2 D-500-0255-567-2
D-500-0255-572-1 D-500-0255-573-2 D-500-0255-575-2 D-500-0255-577-2
D-500-0255-582-1 D-500-0255-583-2 D-500-0255-585-2 D-500-0255-587-2


D-500-0463-612
D-500-0463-613
D-500-0463-614

D-621-0413 D-621-0453 D-621-0454 D-621-0455 D-621-0456
D-621-0415 D-621-0469 D-621-0470 D-621-0471 D-621-0472
D-621-0417 D-621-0457 D-621-0458 D-621-0459 D-621-0476
D-621-0407 D-621-0473 D-621-0474 D-621-0475 D-621-0460

D-621-0418 D-621-0477 D-621-0478 D-621-0479 D-621-0480
D-621-0406 D-621-0461 D-621-0462 D-621-0463 D-621-0464
D-621-0423 D-621-0481 D-621-0482 D-621-0483 D-621-0484
D-621-0424 D-621-0465 D-621-0466 D-621-0467 D-621-0468

Triaxial Connectors
Plug Pin DK-3716-F101-TP DK-621-E102-TS D-621-E077-S D-621-E03K-S
Plug Socket DK-3716-F101-TS DK-621-E102-TP D-621-E077-P D-621-E03K-P
Plug Pin DK-3716-F201-TP DK-621-E202-TS D-621-E077-S D-621-E03K-S
Plug Socket DK-3716-F201-TS DK-621-E202-TP D-621-E077-P D-621-E03K-P
Jack Pin DK-3716-E102-TP DK-621-F101-TS D-621-F077-S D-621-F03K-S
Standard Jack Socket DK-3716-E102-TS DK-621-F101-TP D-621-F077-P D-621-F03K-P
2.4mm max. Jack Pin DK-3716-E202-TP DK-621-F201-TS D-621-F077-S D-621-F03K-S
Jack Socket DK-3716-E202-TS DK-621-F201-TP D-621-F077-P D-621-F03K-P
Jack Pin DK-3716-E112-TP DK-621-F101-TS D-621-F077-S D-621-F03K-S
Long Reach Jack Socket DK-3716-E112-TS DK-621-F101-TP D-621-F077-P D-621-F03K-P
12.5mm max. Jack Pin DK-3716-E212-TP DK-621-F201-TS D-621-F077-S D-621-F03K-S
Jack Socket DK-3716-E212-TS DK-621-F201-TP D-621-F077-P D-621-F03K-P
Panel Connector Contact Terminator Mate with
Thickness Reference Standard Connector Long Reach Connector
Terminators
Plug Pin DK-3716-F077-P DK-3716-E#02-TS DK-3716-E#12K-TS
77 Ohm bus Plug Socket DK-3716-F077-S DK-3716-E#02-TP DK-3716-E#12K-TP
terminator Jack Pin DK-3716-F077-P DK-3716-E#01-TS —
Jack Socket DK-3716-F077-S DK-3716-E#01-TP —
Plug Pin DK-3716-E03K-P DK-3716-E#02-TS DK-3716-E#12K-TS
3K Ohm stub Plug Socket DK-3716-E03K-S DK-3716-E#02-TP DK-3716-E#12K-TP
terminator Jack Pin DK-3716-E03K-P DK-3716-E#01-TS —
Jack Socket DK-3716-E03K-S DK-3716-E#01-TP —

10612 DK-602-0156-N-1 DK-602-0157-N-1
10613 DK-602-0156-N-2 DK-602-0157-N-2
10614 DK-602-0156-N-3 DK-602-0157-N-3

■ Low out-gassing tubing
“A” Polarization
■ DK-621-0933-1P or S
■ DK-621-0934-1P or S
“C” Polarization
■ DK-621-0937-3P or S
■ DK-621-0938-3P or S
“B” Polarization
■ DK-621-0935-2P or S
■ DK-621-0936-2P or S
“D” Polarization
■ DK-621-0939-4P or S
■ DK-621-0940-4P or S
Standard Space Cables
■ Optimized single shield
S16 = 7724S1664-9
S1L = 7724S1LL4 LF*
EMP Hardened
■ S86 = 7724S8664-9
■ S8L = 7724S8LL4-9 LF
Optimized Double Shield
■ S36 = 7724S3664-9
■ S3L = 7724S3LL4 LF
*LF = Low Fluoride
Demateable Terminators
■ Available with and without
lanyard
■ DK-621-0937
■ DK-621-0938
■ DK-621-0939
■ DK-621-0940
■ DK-621-0933
■ DK-621-0934
■ DK-621-0935
■ DK-621-0936

1 Data bus Cable 10613-9 TE 5.3 M
2 Data bus Cable 10613-96 TE 7 M
3 Data bus Coupler D-500-0455-1 TE 1 Pc
4 Data bus Coupler D-500-0455-2 TE 1 Pc
5 Data bus Coupler D-500-0457-1 TE 1 Pc
6 Data bus Terminator D-621-0469-L TE 1 Pc
7 Data bus Contact DK-602-0156-N-2 TE 1 Pc
8 Data bus Contact DK-602-0157-N-2 TE 1 Pc
9 Data bus Connector DK-621-0411-P TE 1 Pc
10 Data bus Connector DK-621-0412-P TE 1 Pc
11 Data bus Connector DK-621-0434-1P TE 1 Pc
12 Marker Sleeve TMS-SCE-3/16-2.0-9 TE 6 Pc
